Minimum Viable Product
Project Overview
This project involved developing a prototype of the Smart HeadGear system, focusing on creating a functional minimum viable product that demonstrates core features. The MVP utilizes a capacitive sensor to detect impact force, with visual feedback through an LED system that changes color based on the force detected - green for low impact, transitioning to red for high impact. This simple but effective visualization system serves as a proof of concept for the final project's more sophisticated impact detection system.
Development Process
Core Features
Implemented capacitive force sensing and LED feedback system.
Hardware Integration
Integrated XIAO microcontroller with capacitive sensor and RGB LED.
Testing
Validated force detection and LED response system.
Results

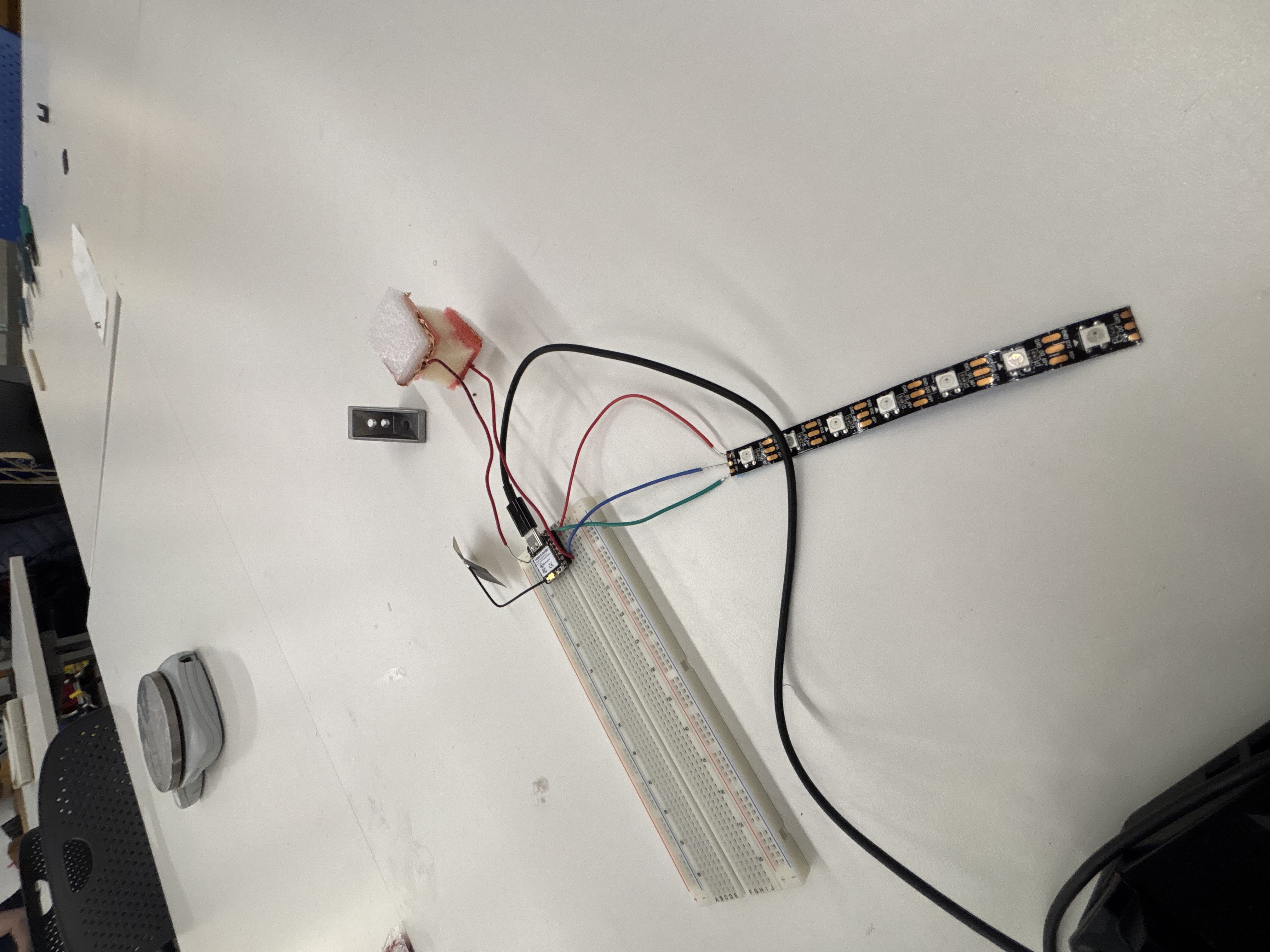

Smart HeadGear MVP prototype with LED feedback system
Testing the prototype's force detection
Impact Threshold System
Impact Level Indicators
The MVP uses a three-level impact detection system with visual and audio feedback:
- Green: Low impact - Safe range
- Yellow: Medium impact - Caution range
- Red: High impact - Warning range with audio alert
Impact threshold visualization with visual alert for high impacts
Project Demonstration
Demonstration of the Smart HeadGear MVP's force detection system
About the Demonstration
This video showcases the Smart HeadGear MVP prototype, demonstrating:
- Capacitive force detection using XIAO microcontroller
- LED color feedback system (green to red based on impact force)
- Real-time response to varying impact intensities
- Proof of concept for impact detection
Note: This LED feedback system serves as a visualization tool for the MVP. In the final project, this will be replaced with more sophisticated impact detection and analysis systems.
Challenges & Solutions
Development Challenges
Encountered challenges in hardware integration and system reliability.
Solutions:
- Optimized component placement
- Improved power management
- Enhanced system stability
